Fully automated testing
for qualitative or quantitative analysis with fast serum protein separation and good resolution.
Serum Protein by Capillary Electrophoresis
High throughput Serum Protein Electrophoresis, with high resolution results.
About Serum Protein by Capillary Electrophoresis
Serum Protein Electrophoresis is a well-established technique routinely used in clinical laboratories to screen samples to detect protein abnormalities as monoclonal gammopathies (Multiple Myeloma, MGUS, Waldenström disease) or inflammatory pattern…
Related Pathologies
Technologies used
Key benefits
Serum Protein Electrophoresis (SPE) delivers high-quality results through full automation on capillary instruments, supporting clinicians at every stage of the myeloma patient journey.

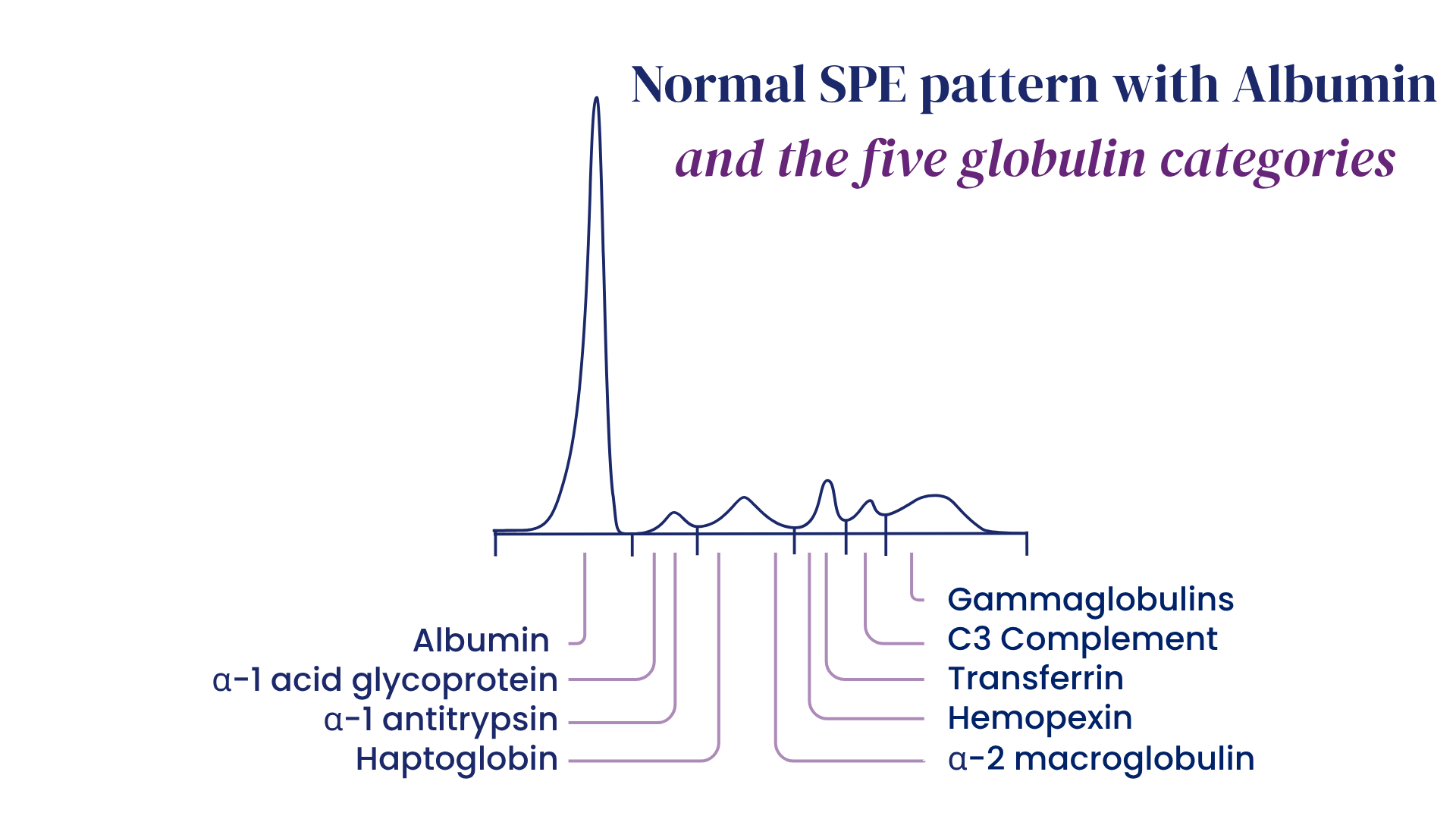

Direct visualisation of Serum Protein profile
for quick screening and identification of abnormal patterns.
Separation into major protein fractions
CAPI 3 PROTEIN(E) 6 kit enables the separation into six major fractions: Albumin, Alpha-1, Alpha-2, Beta-1, Beta-2, Gamma.
Ability to quantify abnormal peaks in two modes
Valley to valley or Baseline to top.
Main characteristics
Test principle
Serum Proteins are separated in silica capillaries by their electrophoretic mobility and the electroosmotic flow at high voltage in an alkaline buffer. Proteins are directly detected during migration by UV absorbance at 200 nm and quantified by the peak quantification tool.
Sample type
Serum
Performances
- Full traceability and positive sample ID from primary tube samples
- Full traceability and reagents management through RFID tags
- Color-coded backlit reagent containers
- Rapid validation via 96 profile mosaic display
Sensitivity
- Monoclonal protein can be detected at a concentration as low as 19 mg/dL.
- According to the mobility of the monoclonal component and polyclonal background, the sensitivity may vary.
Large autonomy
- Samples up to 528 tubes (with tube loader)
- 2.5 hours protein testing"
Throughput
Throughput (tests/hour)*
PROTEIN(E) 6
CAPILLARYS 3 OCTA 79
CAPILLARYS 3 TERA 99
CAPILLARYS 3 TERA MC3 243
MINICAP FLEX-PIERCING 20
Throughput (tests/hour)*
IMMUNOTYPING
CAPILLARYS 3 OCTA 9
CAPILLARYS 3 TERA 11
CAPILLARYS 3 TERA MC3 27
MINICAP FLEX-PIERCING 1.7
* Using Software version 9.30"
Product details
- CAPI 3 PROTEIN(E) 6 – P/N: 2503
- MINICAP PROTEIN(E) 6 – P/N: 2203
