Scalable
CAPILLARYS 3 TERA instruments can evolve into a workcell configuration. Linked to Sebia’s MC loader, 1 to 3 CAPILLARYS 3 TERA will deliver a very high throughput for a single or multiple electrophoresis capillary techniques.
CAPILLARYS 3 TERA
A concentrate of Sebia’s expertise in a high throughput instrument.
99
tests/hour - Protein Electrophoresis Throughput
120
sample loading Capacity
7
parameters available
4
flexible on-board reagent positions
About CAPILLARYS 3 TERA
Compared to the previous generation, CAPILLARYS 3 TERA offers the enhanced throughput of a 12 capillary system and can be turned into a MC* configuration, aggregating 1 to 3 CAPILLARYS 3 TERA to a tube loader (528 positions).
The CAPILLARYS 3 TERA offers a broad assay menu in myeloma, diabetes, hemoglobinopathies and chronic alcohol abuse.
The CAPILLARYS 3 TERA shares the same reagents and consumables as the other CAPILLARYS 3 instruments, allowing the lab to adopt the most relevant platforms, mixing CAPILLARYS 3 OCTA, CAPILLARYS 3 TERA and CAPILLARYS 3 TERA MC configurations to match exactly the needs of their organization.
*Maximum Capacity or MC designation refers to Tube Loader CAPILLARYS 3 - P/N: 1249 and Rack Conveyor CAPILLARYS 3 - P/N: 1250 associated with CAPILLARYS 3 TERA - P/N: 1246
Key Benefits
The CAPILLARYS 3 TERA is designed to address the evolving needs of modern laboratories, offering a comprehensive solution with multiple key benefits.
Smart reagent management

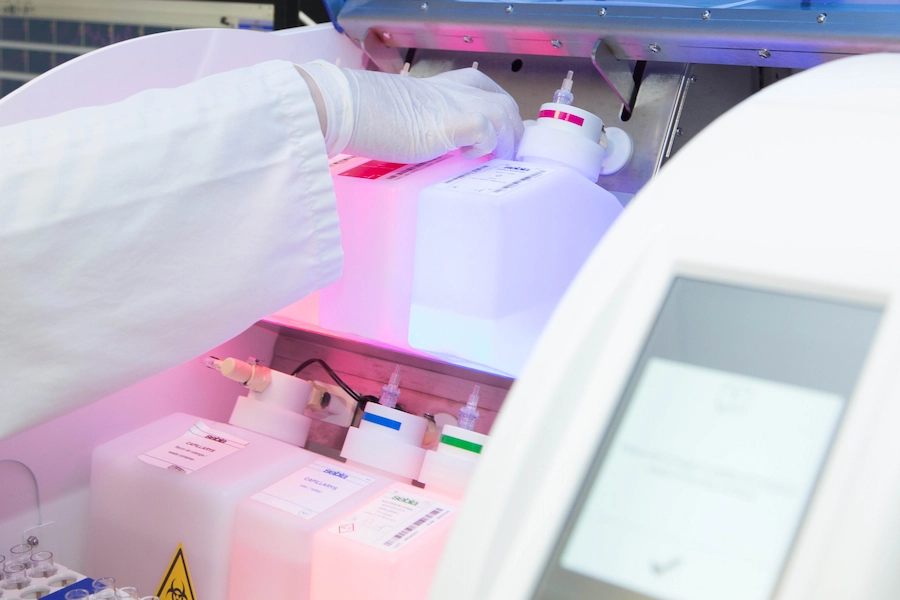

4 open positions for main reagents, temperature-controlled section for secondary reagent (antisera), automated reagent identification, change buffer without interrupting the testing.
Advanced piloting Software
Delivered with each Sebia’s instrument, the PHORESIS software allows laboratories to manage the instrument results providing a very flexible solution.
Related Pathologies
Technologies used
Featured tests for CAPILLARYS 3 TERA
Main Characteristics
Test menu
- Serum Protein Electrophoresis (SPE)
- Serum Immunotyping
- Urine Protein Electrophoresis (UPE)
- Urine Immunotyping
- Hb A1c (venous blood & capillary blood)
- Hemoglobin Electrophoresis (adult blood)
- CDT & CDTIFCC
Sample types: whole blood, urine, serum
Performance
With 12 capillaries, the CAPILLARYS 3 TERA can meet high capacity needs with a large sample autonomy of 15 racks (120 tubes).
Throughput (tests/hour)*
- PROTEIN(E) 6 (serum) 99
- PROTEIN(E) 6 (urine) 102
- IMMUNOTYPING (serum or urine) 12
- Hb A1c 63
- HEMOGLOBIN(E) 66
- CDT 73
*Firmware-dependent; contact your local Sebia representative for current information.
Reagent and consumables
- 4 flexible positions for reagents > optimize your on-board reagent strategy
- Reload reagents without halting specimen analysis > generate results without interruption
- RFID identification for all reagents (reagent type, lot number, expiration date, volume) > comprehensive traceability throughout workflow
- Dilution cups automatically loaded > Accessible loading position
Ergonomics
- Embedded user interface with a touch screen
- Automatic technique change
- Automatic start-up and shut-down
- Visual alarms (with instrument notifications)
- Dedicated workstation to pilot the instrument and manage results
Instrument details
- Sample racks with 8 positions, RFID identified
- Direct sampling from primary tubes
- Automatic homogenisation and piercing for whole blood samples
- Flexible waste management options (on-board or external)
- CAPILLARYS 3 TERA – P/N: 1246
