Fully automated testing
for qualitative analysis with fast separation and good resolution with dedicated reagent and program on CAPILLARYS.
Urine Protein by Capillary Electrophoresis
High throughput Urine Protein Electrophoresis, with high resolution results.
About Urine Protein by Capillary Electrophoresis
Urine Protein Electrophoresis is a well-established technique routinely used in clinical laboratories to detect and estimate the concentration of monoclonal components as Bence Jones proteins (Monoclonal Free Light Chains) or other proteinuria disorders.
Key benefits
Urine Protein by Capillary Electrophoresis : Automated test for screening and quantification.

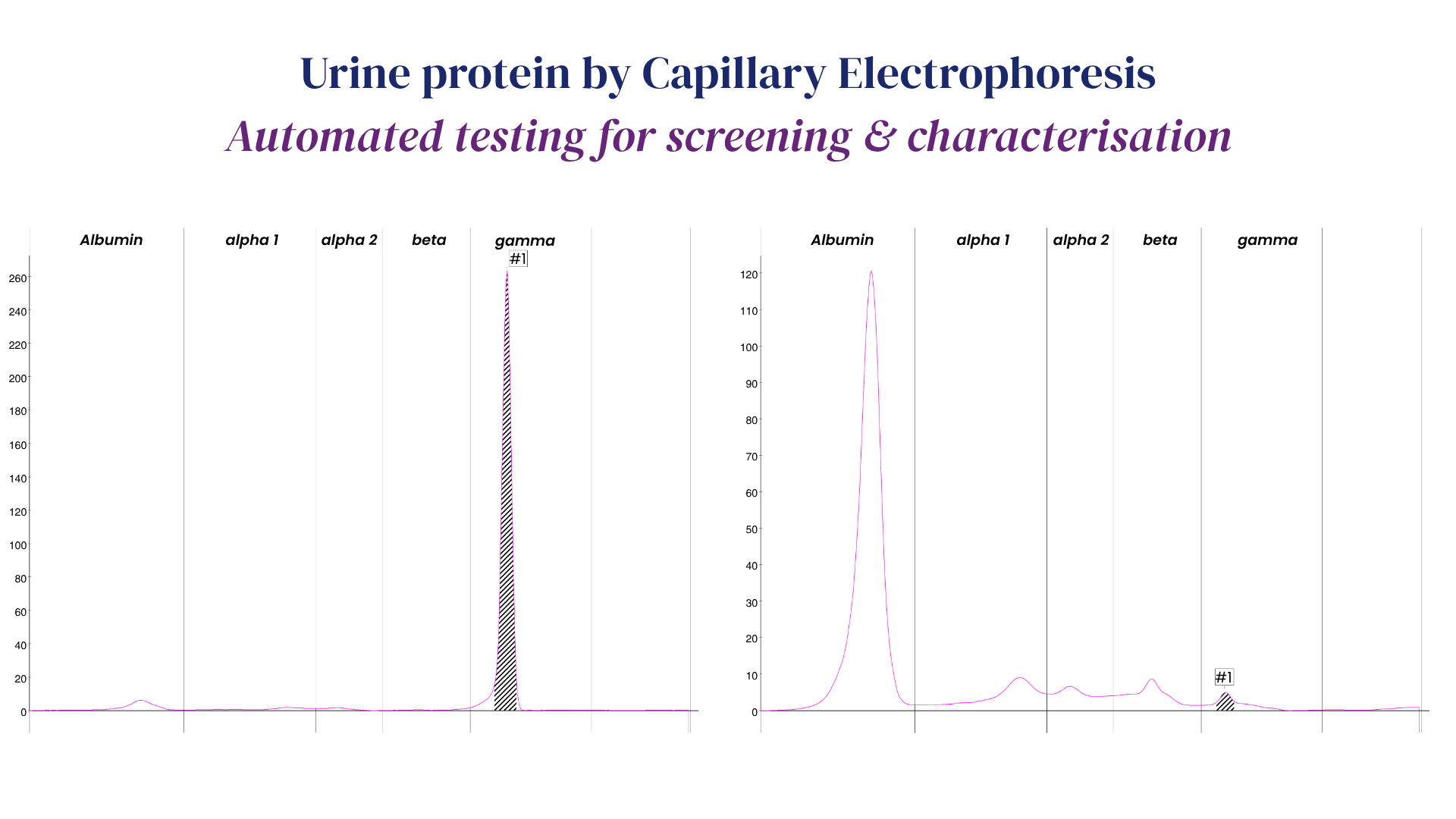

Direct visualisation of urine protein profile
for quick screening and identification of abnormal urinary pattern.
Separation into major protein fraction
CAPI 3 PROTEIN(E) 6 kit enables the separation into five major zones: Albumin, Alpha-1, Alpha-2, Beta, Gamma.
Ability to quantify abnormal peaks in two modes
Valley to valley or Baseline to top.
Main characteristics
Test principle
Urine Proteins are separated in silica capillaries by their electrophoretic mobility and the electroosmotic flow at high voltage in an alkaline buffer. Proteins are directly detected during migration by UV absorbance and quantified by a peak.
Sample type
Urine
Performances
- Full traceability and positive sample ID for primary tube samples
- Full traceability and reagents management through RFID tags
- Color-coded backlit reagent containers
- Rapid validation via 48 to 96 profile mosaic display
Sensitivity
Limit of detection with CAPI 3 URINE:
- Protein abnormality is approximately 9 mg/L
- Bence Jones protein is approximately 20 mg/L
Large autonomy
- Samples up to 528 tubes (with tube loader)
- > 2.5 hours protein testing
Throughput
Throughput (tests/hour)*
Urine PROTEIN(E) 6
- CAPILLARYS 3 OCTA 73
- CAPILLARYS 3 TERA 102
- CAPILLARYS 3 TERA MC3** 260
IMMUNOTYPING
- CAPILLARYS 3 OCTA 9
- CAPILLARYS 3 TERA 12
- CAPILLARYS 3 TERA MC3** 34
*Firmware-dependent; contact your local Sebia representative for current information.
**Maximum Capacity or MC designation refers to Tube Loader CAPILLARYS 3 - P/N: 1249 and Rack Conveyor CAPILLARYS 3 - P/N: 1250 associated with CAPILLARYS 3 TERA - P/N: 1246.
Product details
- CAPILLARYS / MINICAP URINE – P/N: 2013
- CAPI 3 URINE – P/N: 2513
